| Ürün Kodu | Malzeme Tanımı | |

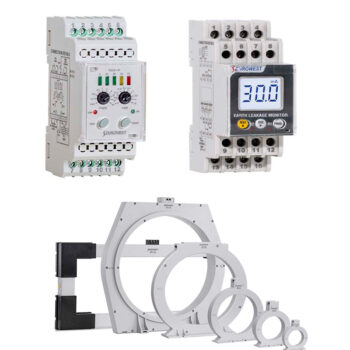

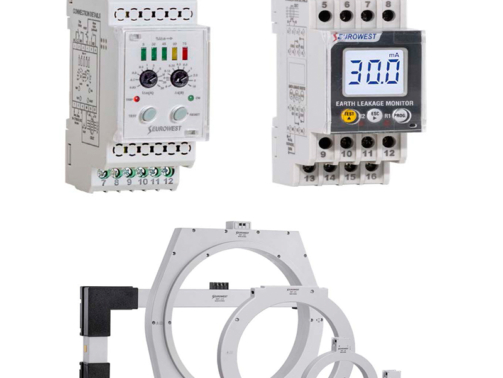

| EKAR2-LC | T.K.A.K. Rölesi (Ray Tipi-Dijital) 10mA-30A / 230V AC | |
| EKAR1-A | T.K.A.K. Rölesi (Ray Tipi-Analog) 30mA-30A / 230V AC | |
| EWT-35 | Ø35mm Kapalı Tip Toroid Akım Trafosu | |
| EWT-70 | Ø70mm Kapalı Tip Toroid Akım Trafosu | |
| EWT-120 | Ø120mm Kapalı Tip Toroid Akım Trafosu | |
| EWT-210 | Ø210mm Kapalı Tip Toroid Akım Trafosu | |
| EWT-310 | Ø310mm Kapalı Tip Toroid Akım Trafosu | |
| EWT-470 | 460x160mm Kapalı Tip Toroid Akım Trafosu | |
| | | |
| MODEL | EKAR2-LC | | EKAR1-A | | |
| Display | LCD display (Actual value of Leakage Current) With back light | Bargraph (% of set point) | | |
| Auxiliary Supply | 90-270V AC/DC | | | |
| Burden On Supply | <3 VA | | | |
| Set Point (IΔn) | A-(0-999mA)
1 0A-(1 -9.99A)
30A-(10-30A) | Pre- Alarm: 50-90% of Leakage current setting | 0.03, 0.1, 0.3, 0.5, 1.0, 3.0, 5.0, 10.0,
20.0 & 30.0 Amps | | |
| Delay | Power ON Delay: 0-99.9 sec Trip Time Delay: 0-99.9 sec
Recovery Time Delay: 0-99.9 SeC (Auto Reset) | 0 (< 25mS for Fault current >5xlth),
60, 150, 250, 500, 800 msec, 1, 2, 5, 10, Sec | | |
| Relay Contacts | 2 Potential free contact (NO, C & NC)
(energise or de-energise on trip programmmable) | 1 Potential free contact (NO, C & NC) (Energise on trip) | | |
| Reset | Auto / Manual programme | Manual | | |
| Trip Relay | 10mA - 30 Amps | 80 - 90% of Set point | | |
| Alarm Relay (Optional) | 50-90% of Trip Setting | 50% of Set Value | | |
| Contact Rating | 5 Amps / 230VAC / 28VDC | | | |
| Temperature | Operating: -100C to 700C, Storage: -200C to 700C | | | |
| Humidity | Up to 95% RH | | | |
| Dimensions | 93x35x68 mm(LxBxH) | Refer diagram E on page no. 22 | | |
| Input | CBCT 35/70/120/210 mm ID | | | |
| Special Features | Password Protection, Bargraph as % of set point, CBCT open circuit detection | CBCT open circuit detection | | |
|
